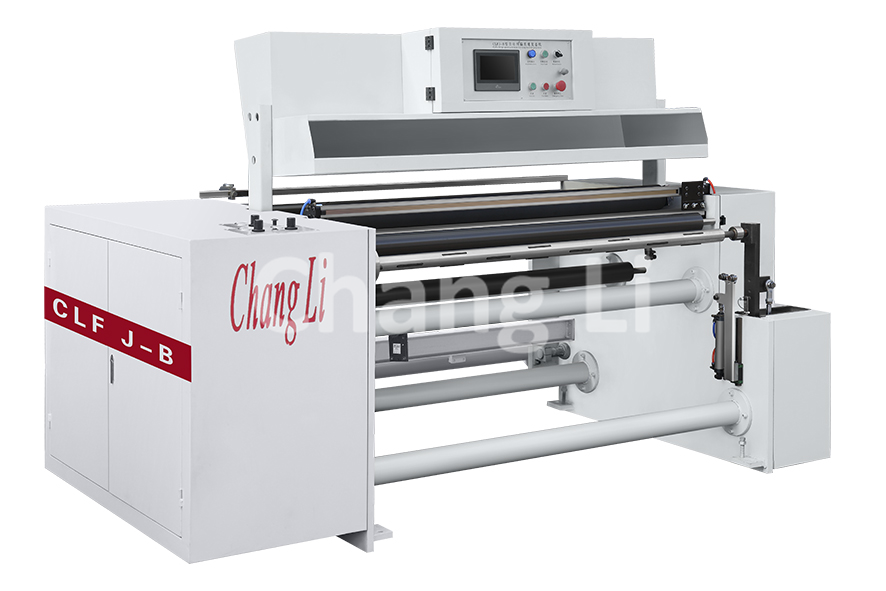

首先工艺性能 Main Technical Parameters

机型 Model	CLFJ-B1000	CLFJ- B1300	CLFJ-B1600
卷材宽度 MAX.Parent Web Width	1000mm	1300mm	1500mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ300mm	Φ300mm	Φ300mm
速率 Max.Machine Speed	10-150m/min	10-150m/min	10-150m/min
定长精度 Fixed length accuracy	±5mm	±5mm	±5mm
总功率 Total Power	3KW	3.5KW	4.5KW
分量 Machine Weight	1000kg	1200kg	1500kg
形状尺寸 Overall Dimensions 任务电压 Working Voltage	2600×2000×1600mm 二相220V50HZ	2600×2200×1600mm 二相220V50HZ	2600×2500×1600mm 三相380V50HZ
纸芯规格 Paper core specification	25mm, 38mm,50mm等 (or according to your requirement)

配伍企业规模该设备关键性使用于常见纸制品包装方式，纸塑包覆类，膜类等装潢资源和包装方式资源的复卷修边分切机。

机可及一大特色 1.滤油机使用交流伺服电机定长上料功能，在速度作业中严格要求自己高精确度。2.PLC触控屏拒绝计米，米数拒绝调节。3.圆刀/直刀纵切废边及时摆放配置。4.手动式主動上料机，收、放法杖配气胀轴。5.拒绝剪断、停车是简静确定，预送推算收魔石再不断收料等功效与作用。

Scope of application

💝This machine is mainly used for re-winding and trimming of various papers, paper-plastic composites, film and other decorative materials as well as packaging materials.

Performance and characteristics

💯1. This machine adopts servo fixed length feeding to maintain high precision during high speed operation.

ဣ2. PLC touch screen automatically counts meters, meters are automatically set.

🌳3. Round knife / straight knife slitting automatic waste discharge device.

ᩚᩚᩚᩚᩚᩚ⁤⁤⁤⁤ᩚ⁤⁤⁤⁤ᩚ⁤⁤⁤⁤ᩚ𒀱ᩚᩚᩚ4. Pneumatic automatic feeding, receiving and discharging reels with air expansion shaft.

ꦬ5. Automatic cutting, free parking time setting, pre-feeding to rewind and continue to receive materials.
