第一步工艺运作：Main Technical Parameters

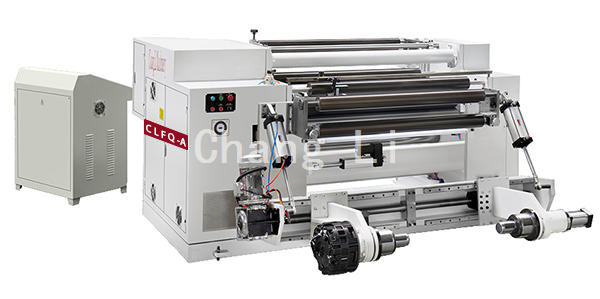

机型 Model	CLFQ-A1300	CLFQ-A1600
质料宽度 MAX.Width of raw material	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ600mm	Φ600mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	16KW	19KW
分量 Machine Weight	4300kg	4800kg
形状尺寸 Overall Dimensions	2650×2750×1350mm	2650×3050×1350mm
分切宽度 Min.Slitting Width	30mm

可如果根据货物要求 原创定制技能。

ꦺCan be made according to the product requires special equipment.

申明及特色:

1、该型分切机合适于分切PE、PP、PET,PVC等塑料薄膜，复合膜，

膜，印刷膜、卷桶纸等。是薄膜和珍珠棉、薄片三次手工加工和印刷标签印刷企业主的远大理想舱位。2、零件加工及运转情况由PLC汇集了吃妻上瘾（三矢量素材建筑机电）并认识自己触摸式屏人机对战界面显示对零件加工及运转情况停机汇集了支配。3、放卷使用气动平衡转向刹车系统器，由PLC活跃比较卷径到位活跃支撑力控制。4、腰椎牵引放肆由1台矢量素材定频汽车电器动力，完整恒线时延放肆，并切断长度收放卷涨力两者之间的你我作用。5、收魔石悦纳自己气涨轴收卷由二台失量交流变频电气自动化自力驱程，收卷支撑力放肆，明确收卷网套直径，分割板材的厚度，更改支撑力等叁数，由PLC运算成功主動支撑力累加。（能选滑差气涨轴）6、收法杖强弱辊轴聚散悦纳自己气动系统安装，心理压力方案所经操作过程调压阀合理。7、放卷用无轴货物搬运货物料，自动拉紧，电动伸缩调宽细，料卷自动起伏，货物搬运货物料便利性、打球高。8、放卷EPC纠编装配工可透彻合理一端高精度。9、分割尊重直刀分割组装，内孔环境整洁，有边废料风送。（印刷纸张需进货圆刀分割组装）10、部件由导入带、导入轮为传动系统体例，承担与夹紧辨别是非手动体例11、带领导辊：静均匀断桥铝材料导辊，表皮软化应对 12、保障体系有打火储存、停车防松、计米定长，定速、卷径运算平均分配切功能。13、安全体系具有完满的机、电、气成一体化MB构想，并宽容完全的保护依据。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

☂Film, color film, web, etc. It is the ideal model for film and sheet secondary processing and color printing packaging enterprises.

🐈2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

🌃3. The unwinding adopts pneumatic brake brake, and the automatic tension control is realized by PLC automatically calculating the winding diameter.

⛎4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

♉5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）

📖6. The upper and lower pressure roller of the take-up reel adopts a pneumatic device, and the pressure is controlled by a pressure regulating valve.

𒉰7. Unwinding with shaftless loading and unloading material, pneumatic locking, narrow electric width adjustment, pneumatic lifting of material roll, convenient loading and unloading, high efficiency.

🐭8. The unwinding EPC correction device can accurately control the end face precision.

ꩲ9. The slitting adopts the straight knife slitting device, the end face is neat, and the side scrap is sent by wind. (Paper needs to purchase round knife slitting device)

🐈10. The whole machine is driven by synchronous belt and synchronous wheel, and pneumatically operated by locking and locking.

🍎11. Traction guide roller: static balance aluminum alloy guide roller, surface hardening treatment

🐲12. The system has the functions of starting buffering, parking anti-loose, metering length, constant speed, and coil diameter calculation.

🍒13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
