用处：

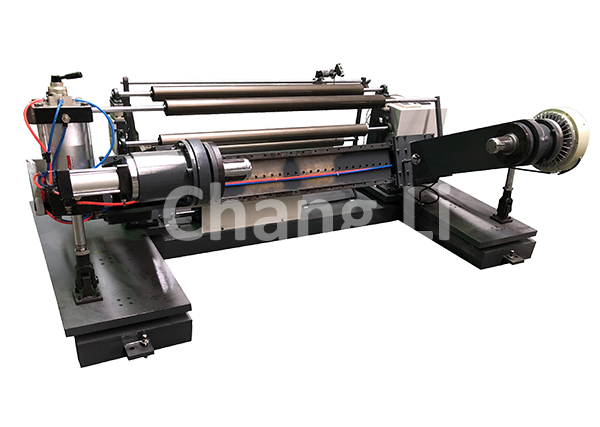

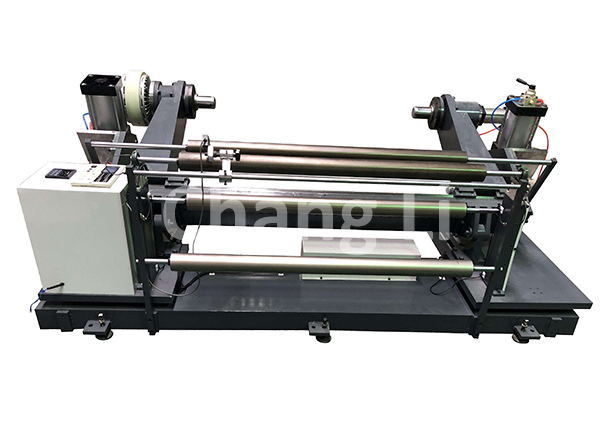

该型放料架适用于无天车产线，装滚筒纸页、塑料制品复合膜，人造革，无纺等大型滚筒知料 use:This type of rack is suitable for non-travel workshops, loading heavy-duty reel materials such as web, plastic film, leather, non-woven fabric, etc.地方特色：放卷辨别是非无轴工作效率高料，气动系统系统拉紧，人工机械式调宽度，风冷式磁粉驻车制动，料卷气动系统系统起伏，工作效率高料便利店、效益高。由拉力传电子元器件中的传感器器到位积极主动拉力有节制。Features:The unwinding adopts shaftless loading and unloading, pneumatic locking, manual width adjustment, water-cooled magnetic powder brake, pneumatic lifting of material roll, convenient loading and unloading, and high efficiency. Automatic tension control is achieved by a tension sensor.（可以选择购夜压送料及电动四轮调薄厚）(Optional hydraulic loading and electric width adjustment)

首要手艺参数：Main Technical Parameters

型号 Model	1300	2000
质料宽度MAX. Width of raw material	1300mm	2000mm
放卷直经Max.parent Web Diameter	Φ1400mm	Φ1400mm
参量 Machine Weight	2300kg	3500kg
图案尺寸 Overall Dimensions	2650×1300×800mm	3050×1300×800mm

可按结果post请求 量身定制装置。Can be made according to the product requires special equipment.
