第一步厨艺性能指标：Main Technical Parameters

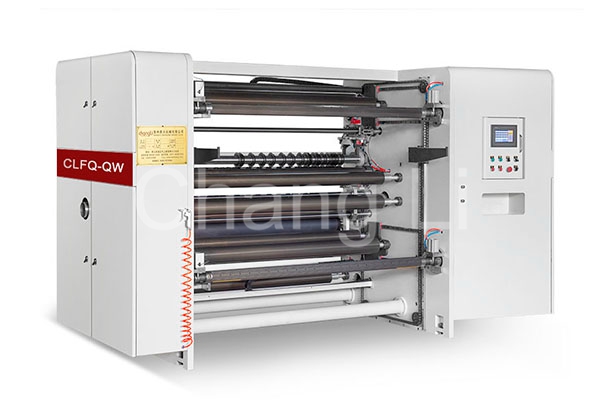

设备 Model	CLFQ-QW1300	CLFQ-QW1600
zui大详细资料厚度MAX. Width of raw material	1300mm	1600mm
zui大放卷直徑Max.parent Web Diameter	Φ1500mm	Φ1500mm
zui大收卷长度Max.Rewinding Diameter	Φ1000mm	Φ1000mm
zui高丝机效率 Max.Machine Speed	10-400m/min	10-400m/min
总效率 Total Power	25KW	29KW
图像 Machine Weight	4300kg	4800kg
外观长宽比 Overall Dimensions	3200×2900×2000mm	3200×3200×2000mm
zui小分切机长度 Min.Slitting Width	20mm	20mm

可按照产物请求 特别订制装备。

Can be made according to the product requires special equipment.

产物申明

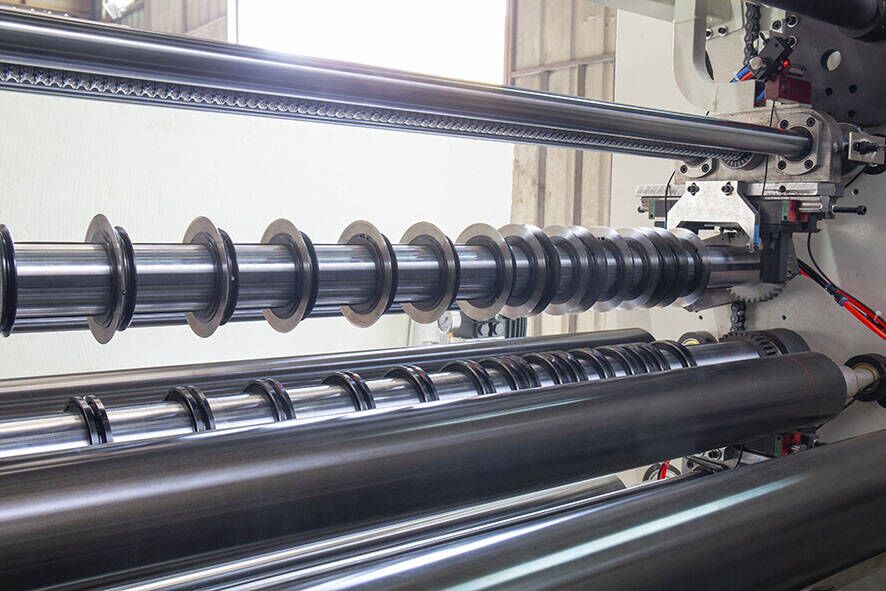

同用投资额机器配伍于各种类型太中大型自粘sbs防水的分切机机，如30g/m2-400g/m2头层牛皮纸包装纸、白夹纸、淋膜纸、铝箔纸、PVC金属、锡纸等自粘sbs防水的分切机机、复卷等。身体机能及特性1. 该设备认识自己异步台达伺服电机建筑机电设备(失量建筑机电设备)合理、分手后锥度弹力，上面卷取体例。服务器主机认识自己变頻可控硅调压，始终坚持加速推进下表中衡作业。2. 主动权计米、报警器功效与作用。收卷使用A、B气胀轴布置图，卸装操作方便。3. 放卷容忍光電自主的纠偏批阅模式，使不准则知料能普通分割。4. 主動调刀标准（输出电压你需耍的分切机规格参数一天排好弹簧），圆刀纵切废边主動污染物装配图。 5. 油压机式会去主动长短料，无轴装卷。6.导轨式主动性上下料装配工艺。

product manual

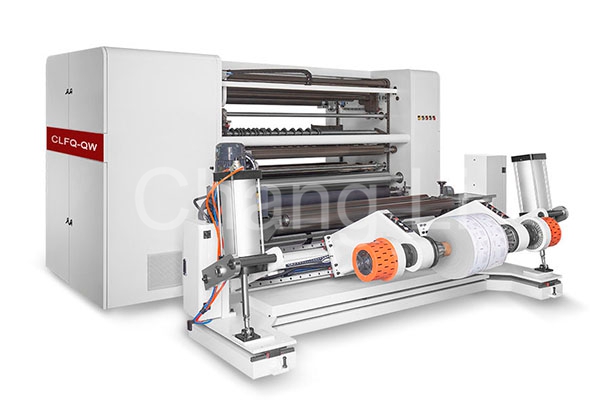

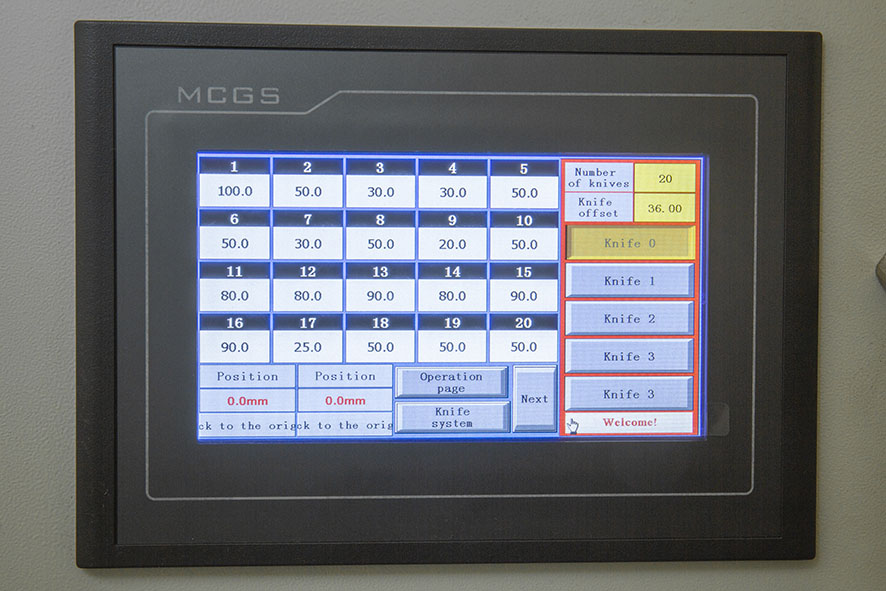

Scope of applicationThis machine is suitable for the slitting and rewinding of various super large coils, such as 30g/m2-400g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.performance and characteristics1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension, and center winding mode. The host adopts frequency conversion speed regulation to maintain a balanced operation during acceleration.2. Automatic meter counting and alarm function. The rewinding adopts A and B inflatable shaft structure, which is easy to unload and operate.3. The unwinding adopts the photoelectric automatic correction system to make the irregular materials can be slit normally.4. Automatic tool adjustment system (input the slitting specifications you need to arrange the tools at one time), and the automatic discharge device for round knife longitudinal cutting waste.5. Hydraulic automatic loading and unloading, without shaft loading.6. Guide rail type automatic unloading device.
